MOES 5 " AI Desktop Smart Home Control Panel – Alexa Built-in, Zigbee & BLE Mesh Hub, IR Control

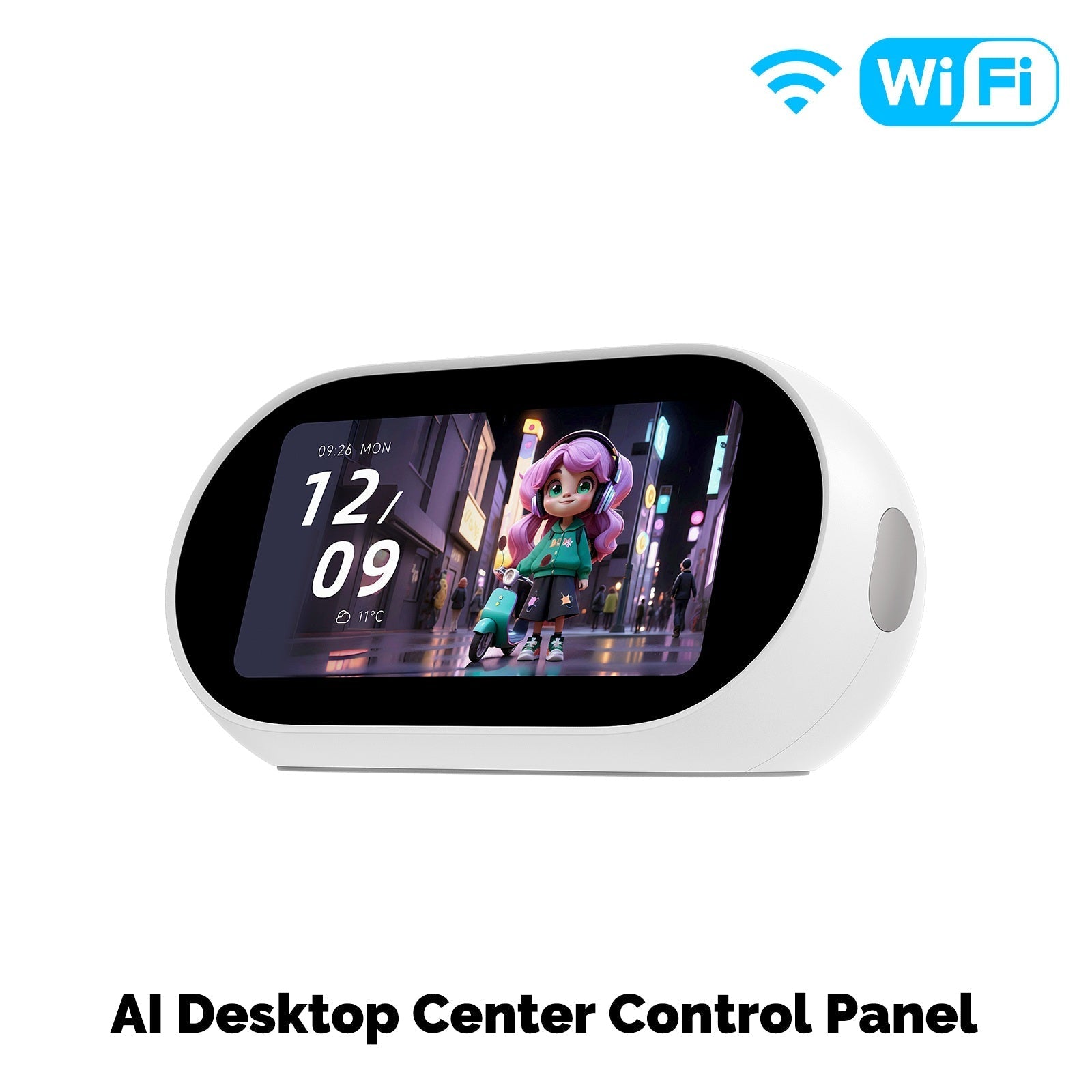

MOES TPL05-T1 AI Desktop Smart Home Control Panel is an all-in-one desktop command centre for compatible smart home devices. It combines a 5-inch touchscreen, built-in Alexa voice control, Zigbee and Bluetooth Mesh gateway functions, IR learning control, security monitoring and Bluetooth audio in one compact device.

Key Features

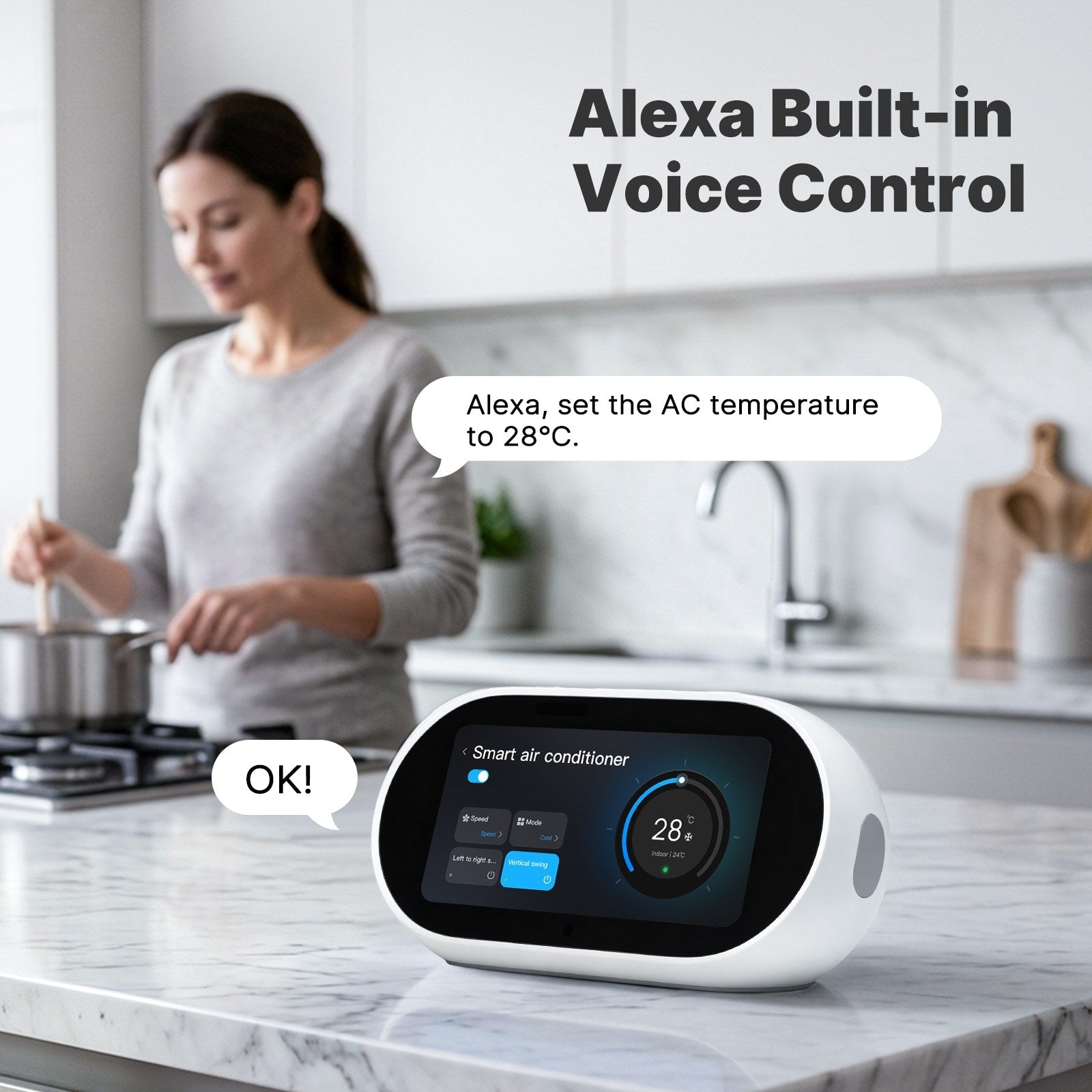

• Alexa Built-in: Hands-free voice control for compatible smart devices and everyday Alexa functions.

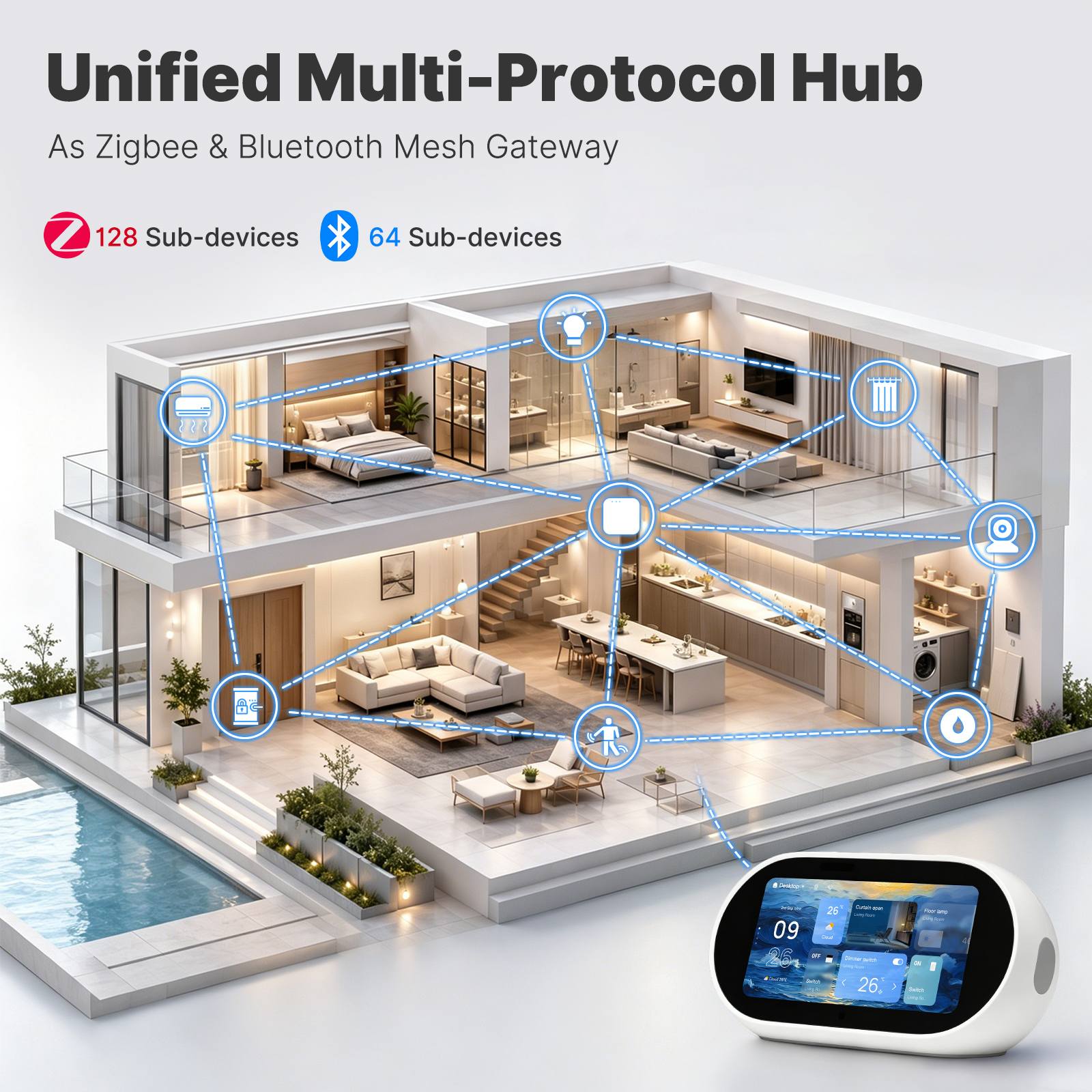

• Built-in Zigbee & Bluetooth Mesh Gateway: Connect and manage compatible Zigbee and BLE Mesh devices without a separate gateway.
• 5-Inch Touchscreen: 480 × 960 display with a customizable interface for device and scene control.

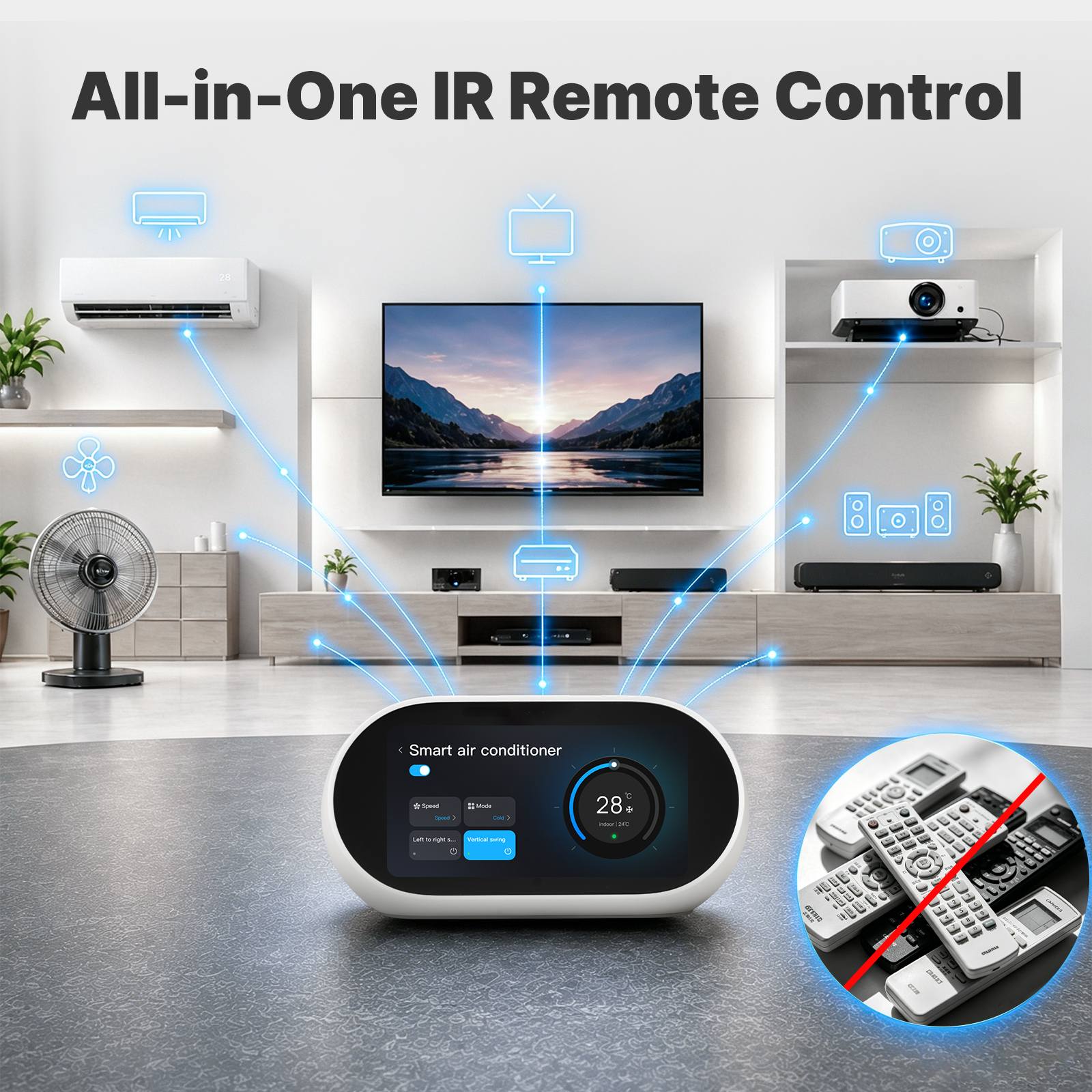

• IR Learning Control: Supports over 5,300 brands and 23,000+ infrared remote codes for compatible appliances such as TVs and air conditioners. IR control is intended for same-room use.

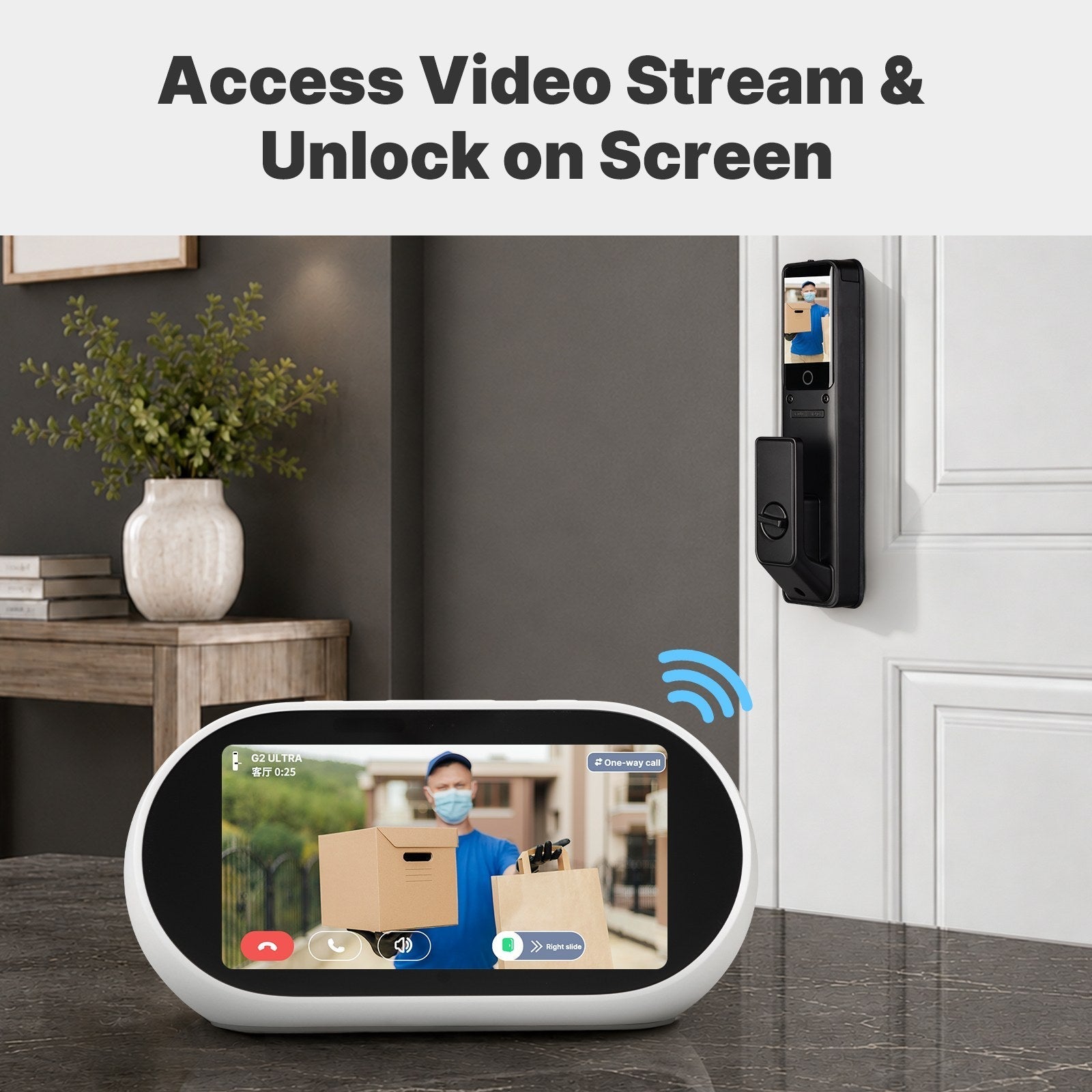

• Video Monitoring: View live streams and notifications from compatible smart cameras, video doorbells and smart locks.
• Smart Security Alerts: Receive on-screen and audible alerts from compatible smoke, gas, water-leak and SOS devices.
• Physical & Touch Shortcuts: Customizable top buttons and side touch controls provide quick access to frequently used functions.

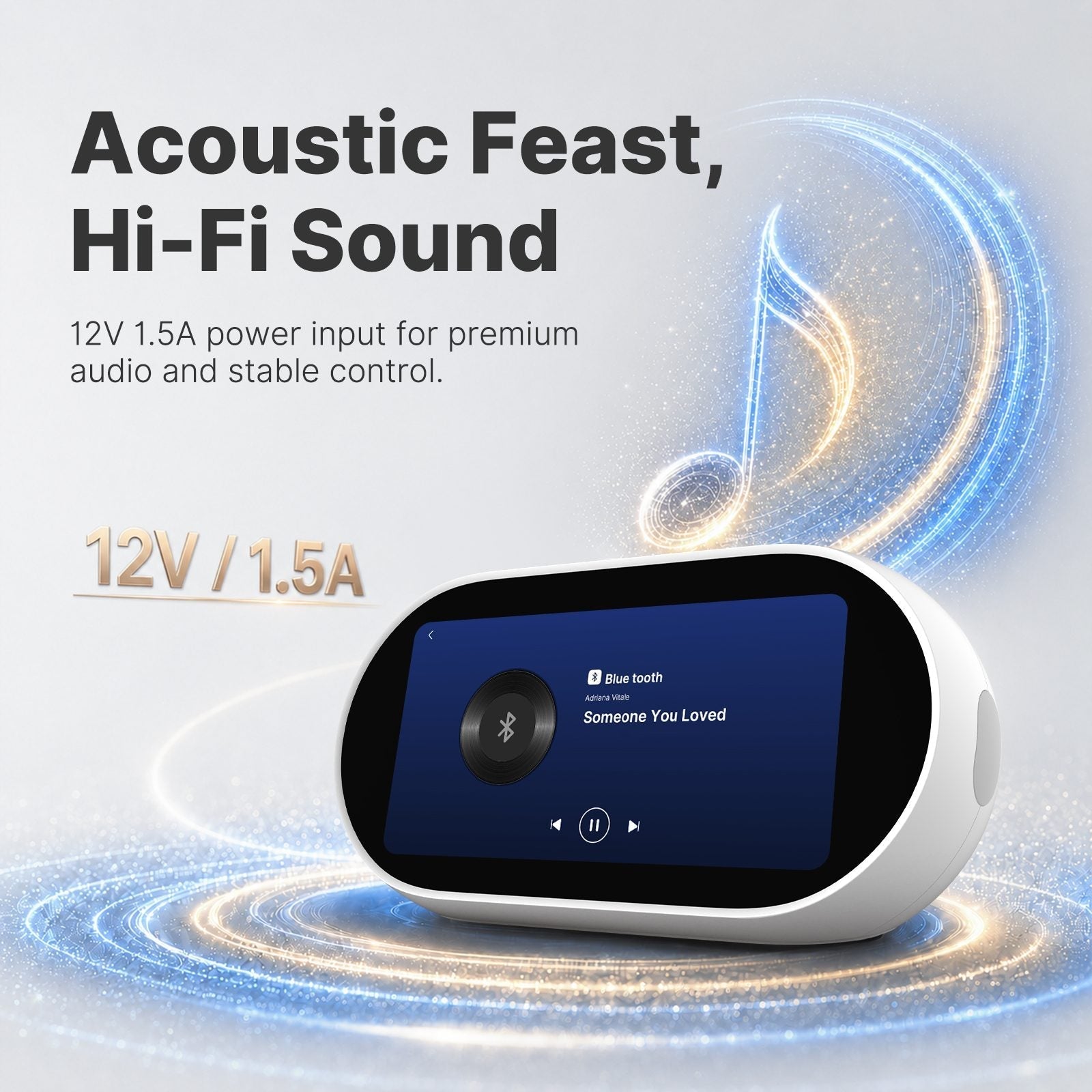

• 5W Speaker: Built-in speaker with Bluetooth audio mode for music playback.
• Family Communication: Supports voice communication through the built-in microphone and speaker. The panel does not include a built-in camera and does not support two-way video calling from the panel itself.

Technical Specifications

• Brand: MOES
• Model: TPL05-T1
• Manufacturer SKU: CCP-5S-EU-MS
• Display: 5 inch, 480 × 960
• Input: 12V DC, 1.5A
• Wireless Protocols: Wi-Fi, Zigbee, Bluetooth Mesh, IR
• Memory: 512 MB Flash + 512 MB RAM
• Speaker: 1 × 5W, peak 8W
• Dimensions: 166.4 × 77.3 × 84.1 mm
• Net Weight: 440 g
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5%–90% RH, non-condensing

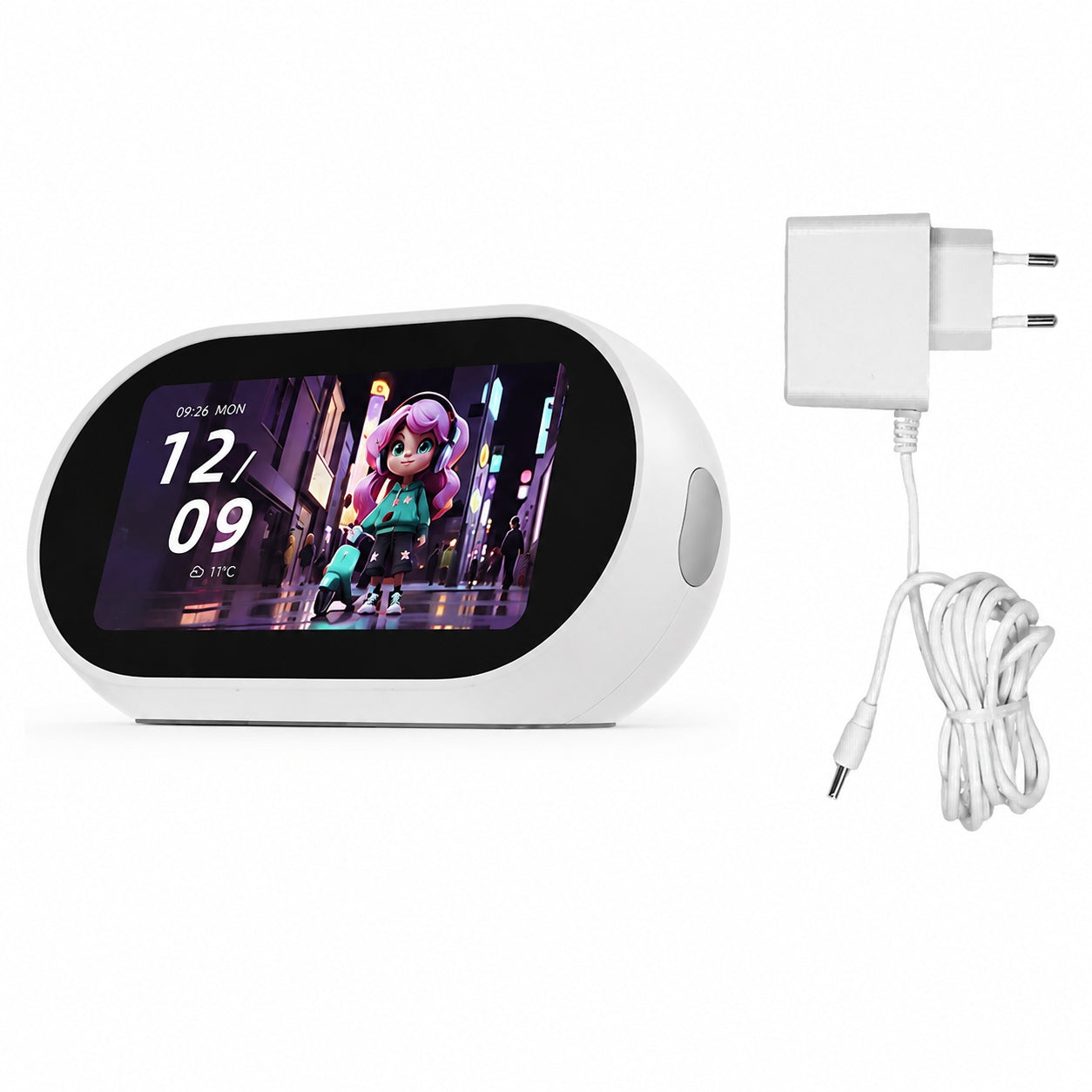

• Plug Version: EU Plug

Ideal For

Smart homes, apartments, villas, offices and other spaces that need a convenient desktop control point for compatible automation, security and entertainment devices.

Compatibility Note: Device compatibility depends on the connected product, protocol and supported ecosystem. Smart Life app compatibility is not explicitly confirmed on the current MOES product page, so it should be verified before advertising this model as Smart Life compatible.
