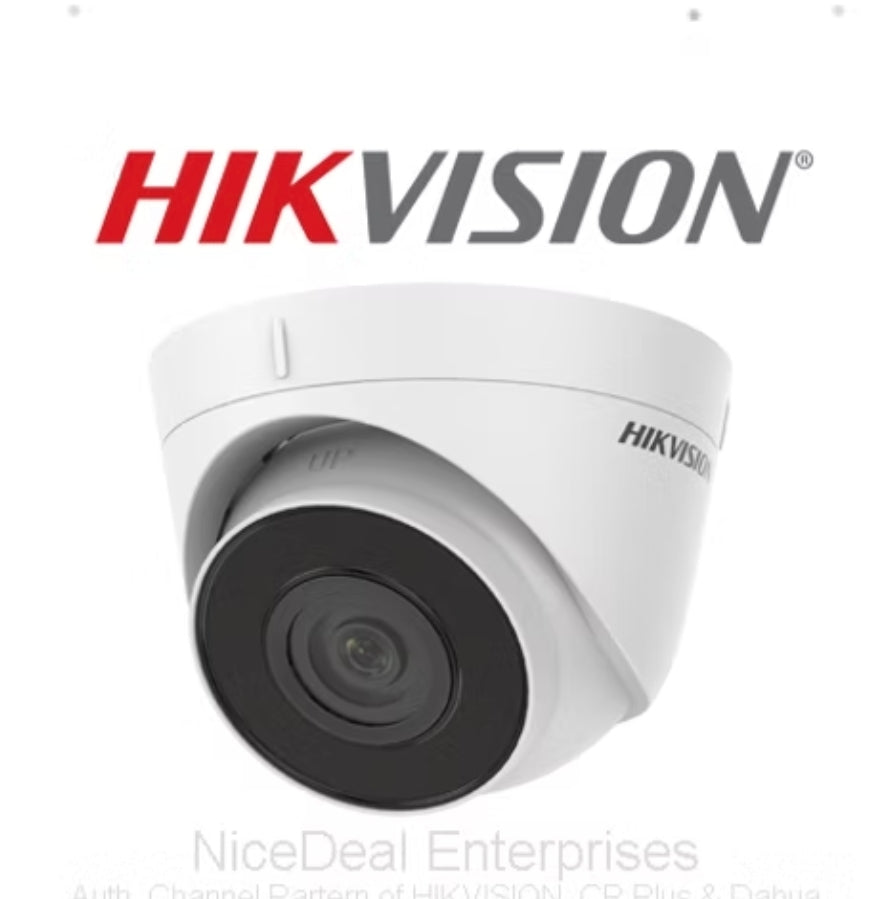

Hikvision 4MP Dome Camera

Hikvision 4MP Full HD IR Dome Camera OUTDOOR-IP

Experience professional-grade surveillance with the Hikvision 4MP IR Dome Camera — engineered for clarity, reliability, and round-the-clock protection. Whether securing your home or business, this camera delivers crisp 4-megapixel resolution with seamless PoE connectivity and a robust IP67 weatherproof build.

Key Highlights

• 4.0 Megapixel High Resolution — Crystal-clear Full HD 1080p real-time video
• Up to 30m IR Night Vision — True day/night visibility with IR cut filter auto-switch
• 4mm Lens — 75° horizontal field of view for wide-area coverage
• PoE Powered — Single cable for power and data (802.3af Class 3)
• IP67 Weatherproof — Suitable for indoor and outdoor installation
• 3D DNR & 120dB WDR — Superior image quality in challenging lighting conditions
• Two Year Warranty

Camera Specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON); 0 Lux with IR
• Shutter Speed: 1/3s to 1/100,000s
• Lens: 4mm @F2.0, Horizontal FOV 75°
• Lens Mount: M12
• Adjustment Range: Pan 0°–360°, Tilt 0°–75°, Rotation 0°–360°
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: 3D DNR

Video & Compression

• Compression: H.264 / H.264+ / MJPEG
• H.264 Profile: Main Profile / High Profile
• Video Bit Rate: 32 Kbps – 16 Mbps
• Max Resolution: 2688 × 1520
• Frame Rate (50Hz): 20fps @ 2688×1520, 25fps @ 1920×1080 & 1280×720
• Frame Rate (60Hz): 20fps @ 2688×1520, 30fps @ 1920×1080 & 1280×720
• Sub-Stream: Up to 25/30fps @ 640×360
• Image Settings: Adjustable brightness, saturation, sharpness, contrast
• BLC: Yes, zone configurable
• ROI: 1 fixed region supported

Network & Connectivity

• Interface: 1× RJ45 10M/100M self-adaptive Ethernet port
• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Storage: NAS (NFS, SMB/CIFS)
• Alarm Triggers: Motion detection, tampering alarm, network disconnect, IP address conflict
• System Compatibility: ONVIF (Profile S, Profile G), ISAPI
• Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

General Specifications

• Power Supply: 12VDC ±25% / PoE (802.3af Class 3)
• Power Consumption: Max. 4W / 6W (PoE)
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Humidity: ≤95% (non-condensing)
• Weather Protection: IP67
• IR Range: Up to 30m
• Dimensions: Ø110mm × 93.2mm (4.33" × 3.67")
• Weight: 570g (1.3 lb)
