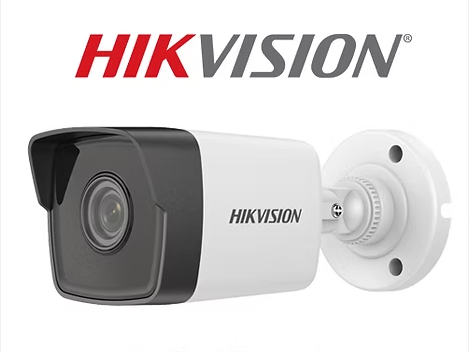

HIKVISION 2MP IP Bullet Camera (PoE, 4mm, 30m IR, H.265+)

HIKVISION DS-2CD1023G0E-I — 2MP IP Bullet Camera - indoor and outdoor

The HIKVISION DS-2CD1023G0E-I is a dependable 2MP IP Bullet Camera built for reliable indoor and outdoor surveillance. With a 4mm fixed lens, 30m IR night vision, H.265+ compression, and PoE support, it delivers sharp 1080p footage with minimal bandwidth usage — ideal for shops, offices, corridors, and entry points.

🔑 Key Features

• ✔ 2MP Full HD 1080p Resolution (1920 × 1080 @ 30fps)
• ✔ 1/2.8" Progressive Scan CMOS Sensor
• ✔ 4mm Fixed Lens (86° Horizontal FOV)
• ✔ H.265 / H.264+ / H.264 / MJPEG Compression
• ✔ 30 Metre IR Night Vision (Smart IR)
• ✔ IP67 Weatherproof Housing
• ✔ PoE Supported (IEEE 802.3af) — Single Cable Setup
• ✔ ONVIF Compatible (Profile S & G)
• ✔ 2 Years Warranty

🎯 Video & Imaging

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 1920 × 1080 @ 25/30fps
• Min. Illumination: Color: 0.01 Lux (F1.2, AGC ON) | 0.028 Lux (F2.0, AGC ON)
• Shutter Speed: 1/3s to 1/100,000s
• Day/Night: IR Cut Filter (Auto Switching)
• WDR: Digital WDR
• Noise Reduction: 3D DNR
• Image Enhancement: BLC, 3D DNR, ROI

🔍 Lens & Viewing

• Lens Type: Fixed, M12 Mount
• Focal Length: 4mm
• Horizontal FOV: 86° | Vertical FOV: 46° | Diagonal FOV: 102°
• Ideal for corridors, entry gates, and focused monitoring areas

🌙 Night Vision

• IR Range: Up to 30 metres
• Smart IR for balanced, glare-free illumination
• Clear visibility in complete darkness

🎥 Compression & Streaming

• Video Compression: H.265 (Main Profile) / H.264 (Baseline / Main / High) / MJPEG
• Video Bit Rate: 32 Kbps – 8 Mbps
• Main Stream: 1920×1080, 1280×960, 1280×720 @ 25/30fps
• Sub Stream: 640×480, 640×360, 320×240 @ 25/30fps
• Dual Stream Support

🌐 Network & Connectivity

• Interface: 1 × RJ45 10M/100M Self-Adaptive Ethernet
• Protocols: TCP/IP, HTTP, HTTPS, RTSP, RTCP, DHCP, DNS, DDNS, NTP, SMTP, ONVIF, IPv6, 802.1X, QoS, UPnP, Bonjour
• ONVIF Compatible (Profile S, Profile G), ISAPI
• Remote viewing via mobile & CMS
• Alarm: Motion detection, video tampering, illegal login

🛡 Build & Design

• IP67 Weatherproof Housing
• Suitable for indoor and outdoor installation
• Dimensions: Ø70mm × 172.7mm | Weight: Approx. 280g
• Operating Temperature: -30°C to 50°C

⚡ Power

• Power Supply: DC 12V ±25% / PoE (IEEE 802.3af, Class 3)
• Max Consumption: 5W (12V DC) | 7W (PoE)
• Single cable setup — no separate power run needed

📦 Applications

• ✔ Entry & Exit Monitoring
• ✔ Shops & Offices
• ✔ Corridors & Narrow Areas
• ✔ Indoor & Outdoor Perimeter Security
